◎The oil source control part adopts Siemens motor and high precision digital valve;
◎The space adjustment mechanism adopts the Kawashima reducer with low noise;
◎Using semi-closed hydraulic jaws, high strength;
◎Vertical control cabinet, touch industrial computer, convenient and practical, saving space;
◎The test adopts the microcomputer automatic control mode, which has the functions of stress rate, strain rate and stress retention and strain retention;
◎Host four-column double screw test space structure;
◎ High-speed Ethernet communication interface communicates with PC;
◎ Standard database management test data;
◎ High-strength, high-toughness and beautiful protective net for safety protection.

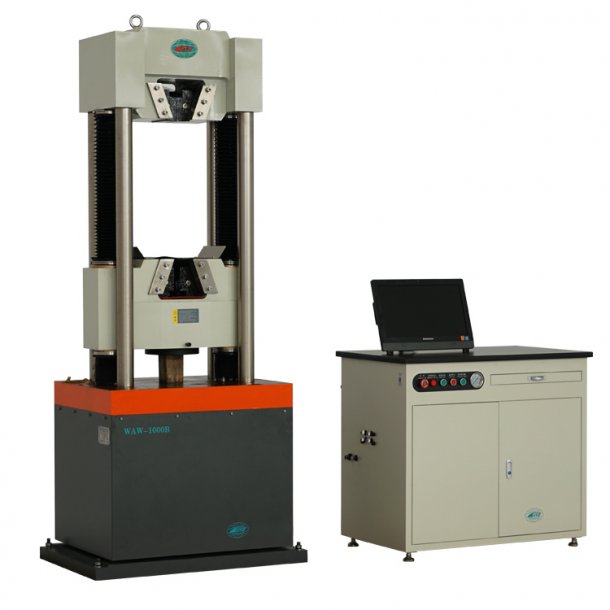

| Model | WAW-1000B |
| Maximum test force (KN) | 1000 |
| Test machine accuracy level | Level 1 |
| Test force collection method | Spoke load sensor |
| Piston stroke (mm) | 200 |
| Clamping method | Hydraulic |
| Test control method | Microcomputer servo control |
| Compression test space (mm) | 600 |
| Tensile test space (mm) | 700 |
| Machine power (kW) | 1.5 |
| Compression platen (mm) | φ225 |
| Round sample clamping range (mm) | φ14~40 |
| Flat specimen clamping range (mm) | 0~40 |
| Number of columns (screws) | 6 columns |
| Mainframe dimensions (mm) | 940x640x2250 |
| Host weight (kg) | 2800 |
| Control cabinet size (mm) | 1010x640x840 |
| Control cabinet weight (kg) | 150 |
