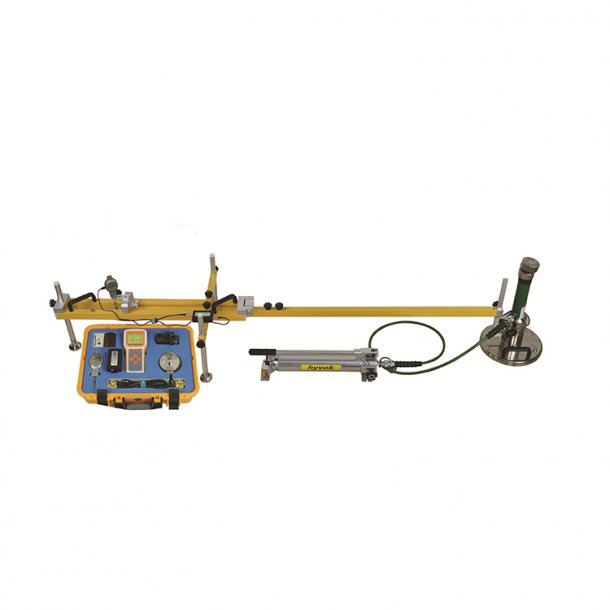

◎It is the first data processing method of APP in China. It realizes data wireless collection and transmission. It also provides cloud transmission ports for docking engineering detection and management system. It provides reliable data sources for real-time data collection, online data analysis and large data management.
◎Imported sensors and some components are used, which has high test accuracy and more reliable test data.
◎Imported cylinders and manual pumps are adopted, with outstanding performance of pressure control and voltage stabilization.
◎The displacement acquisition device adopts heavy profile and three-point support design, which has strong seismic and windproof capability and ensures accurate data.
◎Displacement acquisition data: single point acquisition of load plate center, data more objective and accurate;
◎The wireless Bluetooth micro printer can print directly on the spot to ensure the accuracy and objectivity of the test results.
◎Direct display of load strength and settlement value, automatic calculation of K30, K40, K60 value, and display pressure and settlement curve.
| Product Model | IWIN-WK | |
| Test scope of application | Applicable Soil Types | Soil-rock mixed fillers with particle size less than 1/4 of the diameter of bearing plate |
| Test impact depth | 0～500mm | |
| Work environment | Temperature-10~40 C Humidity <90%HR | |
| Handheld host | Specifications | Huawei Mobile Phone |
| Screen size: 5 inches | ||
| Volume: 145 x 70 x 10 mm | ||
| Weight: 110g | ||
| Storage capacity | Depending on the memory of the phone, 10G storage capacity | |
| Data transmission mode | Data wireless transmission; data cloud transmission | |
| Power supply mode | Depending on the cell phone battery | |
| Display mode | Mobile App mode, Chinese and English switching display | |
| Printer | Connection mode | Wireless Bluetooth Printing |
| Sensor | Pressure Sensor Range | 100kN |
| Displacement sensor range | 25 mm, resolution 0.01 mm | |
| Data Acquisition Device | Bearing plate | Diameter: 300mm |
| Thickness: 25mm | ||
| Weight: 17.5 kg | ||
| Loading device | Hydraulic Pump: Pressure 100 kN | |
| High Pressure Hose: Length 2m | ||
| Pluggable pressure cylinder connecting rod: 1 x 40 mm. | ||
| 1 x 90 mm, 1 x 120 mm, | ||
| 1 x 160 mm, 2 x 60 mm | ||

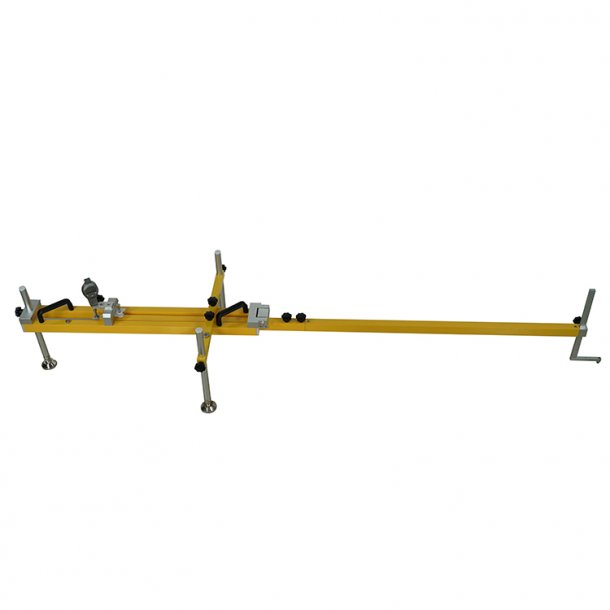

| Settlement measurement device | Three-point bracket (with retractable, | |
| Rotary lever arm, adjustable base) | ||
| Dimension: 2320 x 570 x 420 mm (long X, wide X, high) | ||
| Weight: 12.5 kg | ||

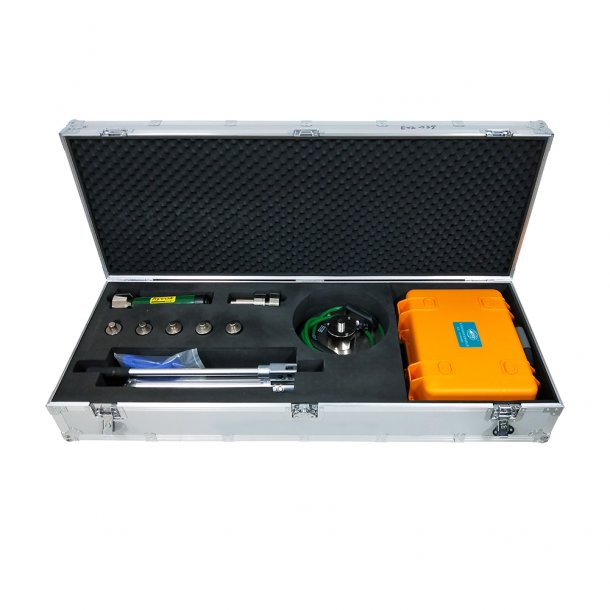

| Packing specification | Host box | Material: Engineering Plastics |
| Volume: 470 x 360 x 170mm | ||
| Weight: 7.0kg | ||

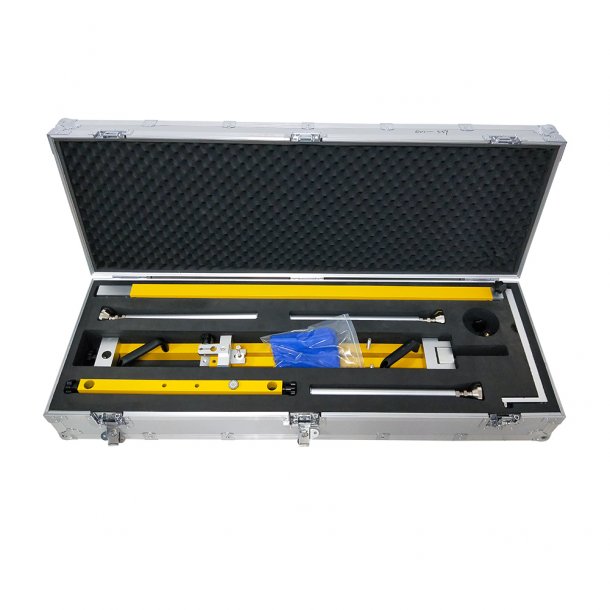

| Outer packing box 1 | Material: Aluminum alloy | |
| Volume: 1410 x 510 x 260 mm | ||
| Weight: 72 kg | ||
| Outer packing box 2 | Material: Aluminum alloy | |
| Volume: 1270 *440 *230mm | ||
| Weight: 32kg |
