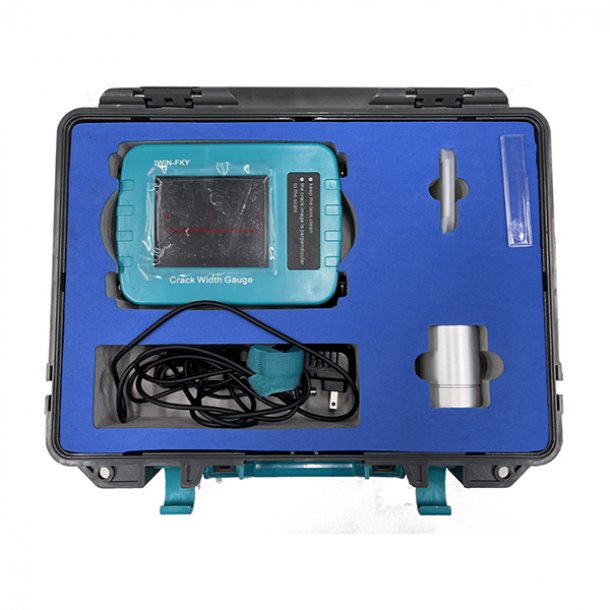

FKY crack width gauge is used to measure the crack width in concrete buildings such as houses, roads, and bridges.
|
Product Feature |
|
1.New upgrade, adopting three-proof shell design, waterproof, dustproof and shockproof; |
|
2.Using imported sensor chip, the test accuracy is high; |
|
3.The main screen has a tick mark for direct reading; |
|
4.The probe is equipped with night vision function, which can also be tested in dark environment; |
|
5.Built-in rechargeable polymer lithium battery, greatly extending the working time and service life. |
|
Host parameters |
Waterproof level: IP65 Screen size: 5 inches LCD resolution: 640 × 480 Volume: 195 × 140 × 45mm Weight: 0.8kg |
|
Measuring range |
0.02 ~ 2.00mm |
|
Reading Accuracy |
0.02mm |
|
Magnification |
40 times |
|
Minimum indexing |
0.02mm |
|
Power supply mode |
Built-in lithium battery |
|
Connection length |
2.5m |
|
Host weight |
0.8kg |
|
Work environment |
Temperature: -10 ° C ~ 40 ° C Humidity: <90% RH |
|
Packing specification |
Material: engineering plastic Volume: 420 × 140 × 335mm Weight: 5kg |
