5 ton tube ice machine is a good choice for community ice business. The ice plant design provided is able to make the machine operation during night, to make more profit for you. A complete tube ice plant normally is equipped with water filter, water tank, tube ice machine, ice bin, ice packing machine, cold storage and ice delivery car. We are able to provide you with the whole line of products. There is no need for you to buy all those products one by one.

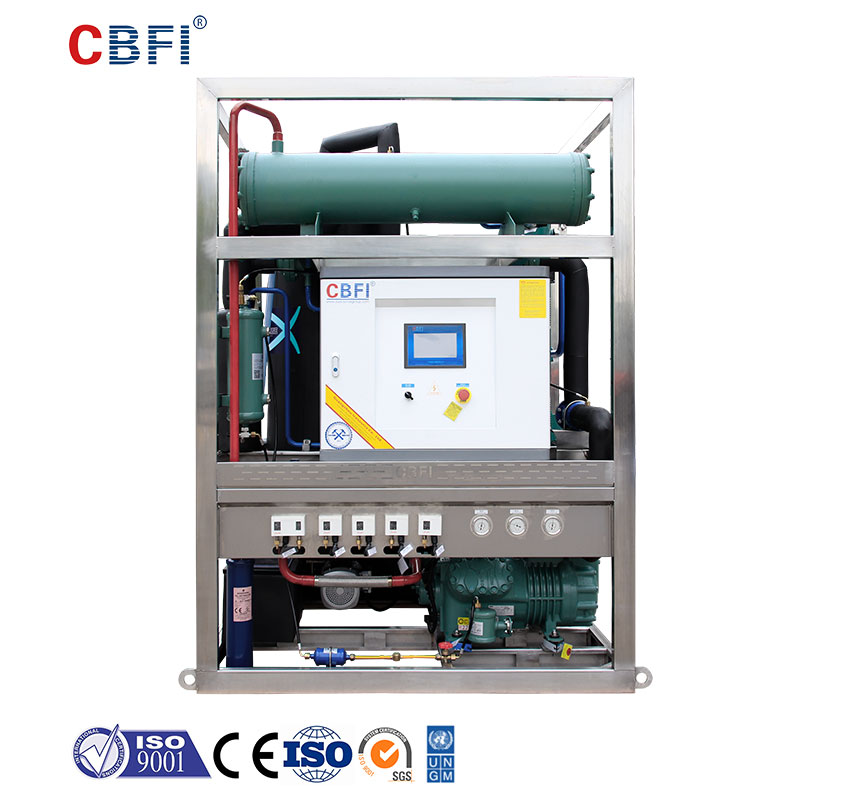

CBFI TV50 5 Tons Per Day Ice Tube Making Machine With CE
Product Features
● Daily Production 5 ton
● 2)Evaporator uses stainless steel & PU foam insulation, tunnels are insulated to save energy and good looking.
● All materials have contact with ice we use food grade SUS304 stainless steel to ensure the safety of our ice.
● Automatic laser welding to make the welding work nice and no leak, ensured the low fault rate.
● Machine has passed CE certification.
● 6)Special water system design to make ice good and evenly thickness, clear and pure
● 7)Able to match the stainless steel conveyor and ice bin, and hand or automatic package system.
Tube Ice Application
Drink Cooling
Food Processing
Fishery
Food Preservation
Supermarket
Product Parameter
| TV50 5 ton Tube Ice Machine Parameters | ||||
| Name | Unit | Parameter | ||
| Tube Diameter | mm | Φ22 | Φ28 | Φ35 |
|
Bitzer Compressor Parameter |
Model | 6HE-28 | ||
| Cooling Capacity（kW） | 56.8 | |||
| Power（kW） | 19.9 | |||
|
Condenser |
Model | WN-25 | ||
| Heat Exchange（kW） | 95.2 | |||
| Condensing Temperature | Degree Celsius（℃） | 40 | ||
| Evaporating Temperature | Degree Celsius（℃） | -12 | ||
| Ambient Temperature | Degree Celsius（℃） | 32 | ||
| Water Temperature | Degree Celsius（℃） | 20 | ||
| Refrigerant | R22 | |||
| Voltage | V/P/HZ | 380/3/50 | ||
|
Motor Power |
Ice Cutting Motor（kW） | 1.5 | ||
| Recircling Pump（kW） | 1.5 | |||
|
Cooling Tower |
Model | LX-30 | ||
| Power(kW) | 0.55 | |||
|
Cooling Pump |
Model | GD65-19 | ||
| Power | 2.2 | |||
| Cooling Fan Power | Power（kW） | 0.75 | ||
|
Water Cooling Machine Dimension |
L*W*H(mm) | 1600*1400*2250 | ||
| Refrigerant Quantity | kg | 100 | 120 | 140 |
| Machine Weight | kg | 180 | ||
Product Details

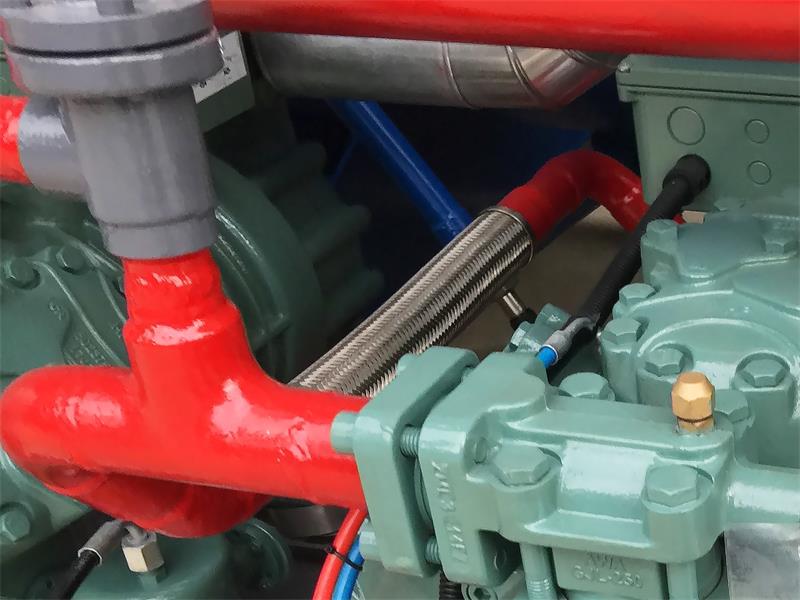

Anti-shock Tube
To avoid a shock damage, we use anti-shock tube in key point such as the outlet of compressor.

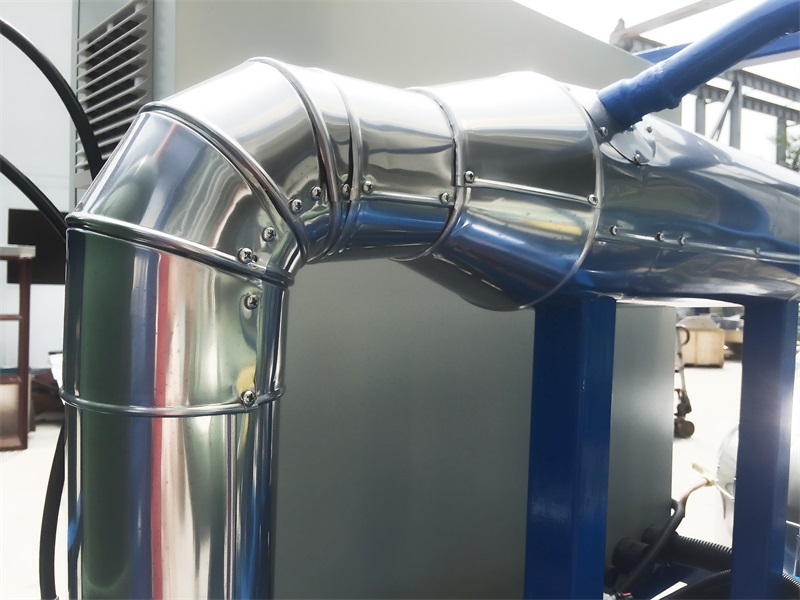

Pipe Insulation
All pipes are covered by insulated material inside and stainless steel or aluminium outside. Thus, our machine have better efficiency and appearance.
Clean Ice
All parts will get in touch with water and ice are made by food grade material, to ensure the clean of the ice.

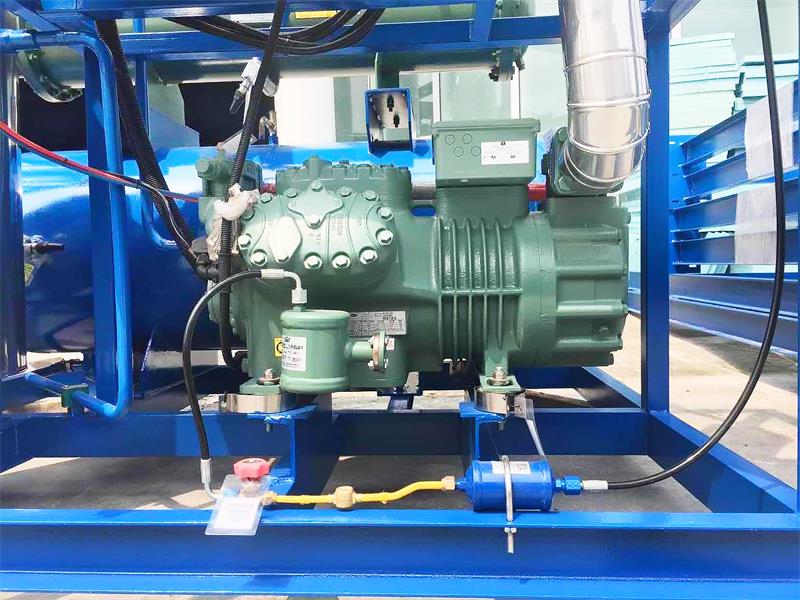

Bitzer Compressor
The world famous brand Bitzer supply us a good quality compressor as the stable heart for the ice machine.
