1 ton tube ice machine is the little brother in the family. The low power consumption and convenience make it the very welcomed product in many countries. The power standard of the machine is able to be customized. Single phase power type is already widely welcomed in many countries such as Malaysia the country which has thousands of islands.
CBFI TV10 1 Ton Per Day Tube Ice Making Machine For Drinks
1 ton tube ice machine is the little brother in the family. The low power consumption and convenience make it the very welcomed product in many countries. The power standard of the machine is able to be customized. Single phase power type is already widely welcomed in many countries such as Malaysia the country which has thousands of islands.
Product Features
● Daily Production 1 ton per 24 hrs
● Air cooled or water cooled provided
● 3D designed to ensure the container transportation. Easy for installation & maintaining
● All materials have contact with ice we use food grade SUS304 stainless steel to ensure the safety of our ice.
● PLC intelligent controlled, full automatic production, need no human operation.
● Easy to operate, touch screen human friendly interface.
Tube Ice Application
Drink Cooling
Food Processing
Fishery
Food Preservation
Supermarket
Product Parameter
| TV10 1 ton Tube Ice Machine Parameters | ||||
| Name | Unit | Parameter | ||
| Tube Diameter | mm | Φ22 | Φ28 | Φ35 |
|
Bitzer Compressor Parameter |
Model | 4EES-4 | ||
| Cooling Capacity（kW） | 11.04 | |||
| Power（kW） | 4.1 | |||
|
Condenser |
Model | WN-5 | ||
| Heat Exchange（kW） | 19.4 | |||
| Condensing Temperature | Degree Celsius（℃） | 40 | ||
| Evaporating Temperature | Degree Celsius（℃） | -12 | ||
| Ambient Temperature | Degree Celsius（℃） | 32 | ||
| Water Temperature | Degree Celsius（℃） | 20 | ||
| Refrigerant | R22 | |||
| Voltage | V/P/HZ | 380/3/50 | ||
|
Motor Power |
Ice Cutting Motor（kW） | 0.75 | ||
| Recircling Pump（kW） | 0.37 | |||
|
Cooling Tower |
Model | LX-8 | ||
| Power(kW) | 0.25 | |||
|
Cooling Pump |
Model | GD40-15 | ||
| Power | 1.1 | |||
| Cooling Fan Power | Power（kW） | 0.18 | ||
|
Water Cooling Machine Dimension |
L*W*H(mm) | 1100*900*1780 | ||
| Refrigerant Quantity | kg | 50 | 53 | 58 |
| Machine Weight | kg | 900 | ||
Product Details
Evaporator

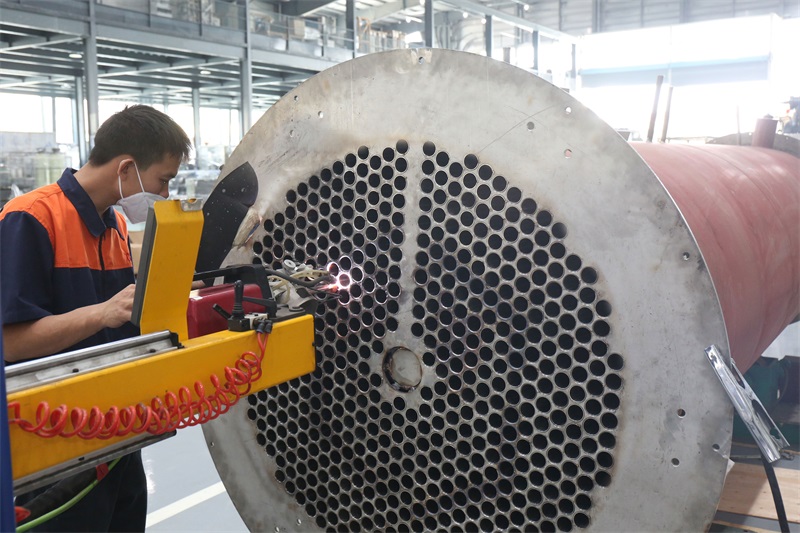

Evaporator is the kernel of tube ice machine. Using 360°automatic welding machine, weld is compact and flat without gap. Refrigerant and water through the evaporator will not leak. The strong evaporator can increase the service time of the machine.
Ice Mold
Stainless steel 304 outer cylinder evaporator, improve the cold exchange performance. And the material is food standard. The water is clean for ice making.
Top Brand Parts
World famous brand parts, such as Bitzer compressor, Siemens PLC, are used for better quality.
Air Condenser
Air condenser is using big fans which have more air volume. The heat exchange efficiency is higher.
Control System
Human friendly control system with brief control surface is used. Touch screen makes it much easier for you to control and monitor the whole machine.
