30 tons 24 hrs flake ice machine BF30000 is very suitable for fresh fish cooling. Our machine is very welcomed in aquatic product processing plant. Flake ice is soft and thin, and do no damage to the skin of the fish. Contact us for more details.

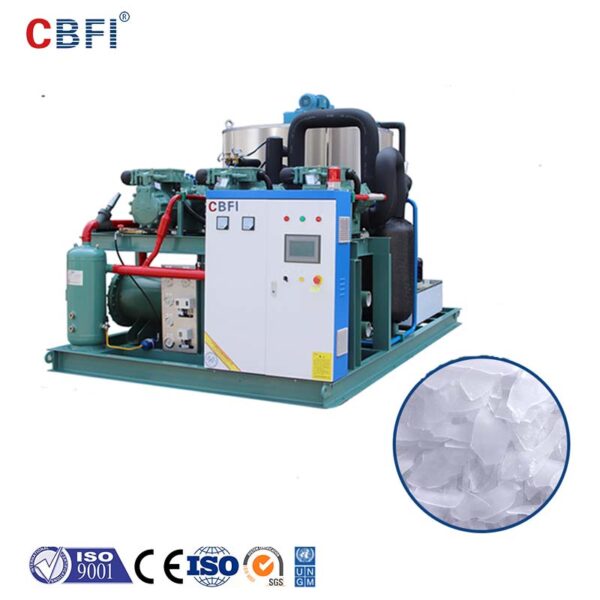

CBFI BF30000 30 Tons Per Day Ice Flake Machine
Main Features
● Daily Capacity: 30 ton 24 hrs● Containerized system is available, it is movable. And the ice machine is pre-installed.● Machine power supply: 3 phase industrial power supply ● PLC controlling system, very easy to use.● Design available for water lacking areas to use sea water to produce ice.● With a rake system you can achieve automatic producing.● Low temperature: ice temperature -8 degree● Flake Ice shape with excellent cooling performance● No sharp edges, so it no hurt the cooling products● 1~2 mm thickness, no need to crush and can use at any time
Dye-chemistry industry, large concrete project, large crude and fresh supermarket, meat process, large fishery wholesale market, food processing company and more
Product Parameter
| Flake Ice Machine Parameters | |||||||
| ModelDaily output (T/24h)Cooling MethodCompressor Power Fan Power for Cooling TowerCooling Pump Power Unit size (L*W*H mm)Unit N.W. (kg)BF5000.5Air4.1kw——1280*800*800160BF10001Air7.44kw——1320*900*900210BF20002Air10kw——1750*1100*1050360BF30003Water 8.45kw0.37kw1.5kw1500*1250*12601000BF50005Water 13.49kw0.75kw2.2kw1900*1500*14701100BF60006Water 19.94kw0.75kw2.2kw1900*1500*14701100BF80008Water 24.2kw1.5kw2.2kw2400*1900*18601300BF1000010Water 33.8kw1.5kw4kw2500*2000*18601500BF1500015Water 44.5kw1.5kw4kw3350*2150*19603200BF2000020Water 64kw1.5kw5.5kw3400*2220*22304200BF2500025Water 76.5kw2.2kw5.5kw3700*2250*25104600BF3000030Water 93.7kw2.2kw7.5kw4700*2250*25205000BF4000040Water 118kw2.2kw7.5kw5000*2300*27007500 ♦ Compressor Brand: Bitzer / Hanbell; Refrigerant: R22/R404A or Ammonia R717; ♦ Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). ♦ Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 38 ° C,T(evaporating)：-20℃. ♦ (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) ♦ (The final interpretation of the above metioned parameters is in Icesource, there will be no further notice, if there is any technical change.) |
Ice Rake SystemFor large capacity ice plants we can provide you ice rake cold storage to install an automatic ice plant. This system allows you to decrease the labor cost, and enhance the working efficiency.
Automatic Control SystemWe use Siemens PLC and touch screen for the control system. The system is easy to use, and highly automatic.
Pressure Control SystemWe use Danfoss pressure protector and pressure gauge build a pressure control system. The good quality of the components ensure the stable pressure in the system.
