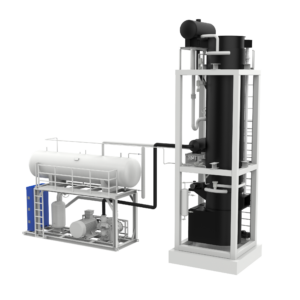

CBFI AT80 80 Tons Per Day Ammonia Refrigerant Tube Ice Making Machine
The 80-ton ammonia system tube ice making machine has a high capacity. At present, we provide customers with 60 tons of 24 hours and 80 tons of 24 hours. The CBFI AT Series Tube Ice Machine is an ammonia refrigerant system designed to apply the ultra-large tube ice production capacity. The AT Series provide the best warranty for automation, energy efficiency and business, making the CBFI tube ice making machine the best choice for your ice making business.
Product Features
● Production of 80 tons per day for 24 hours
● The evaporator is made of stainless steel and PU foam insulation is used to increase efficiency.
● Automatic laser welding makes the welding work beautiful, and the leakage is eliminated, ensuring the whole tube ice making machine working under low failure rate.
● All equipments are assembled in 3D simulation, compact structure, and humanized operation and maintenance.
● The special alloy machine combines the unique heat treatment process to make the evaporator have the best thermal performance.
● Ammonia flooded operation.
● Well-designed stainless steel cutter with beautiful appearance and easy maintenance.
● PLC system automatically controls the ice making process.
Tube Ice Application
Drink Cooling
Food Cooling
Fish Preservation
Food Keeping
Retail Sale
Product Parameter
| Tube Ice Machine （Ammonia）Parameters | ||||||||||
| Model | Capacity | Compressor | Total Power | Evaporator size | Host Size | Installation Space Requirements | Power Consumption |
Ice Size/mm | Shipping Weight | |
| Ton/Day | Brand | KW | L×W×H(mm) | L×W×H(mm) | A×B×H(m) | kW·h/ton | Diameter | Length | Ton | |
| AT60 | 60 | MYCOM | 160 | 2930×2250×8500 | 3445×1455×1535 | 13×7×9 | 55~60 | Φ22 | 30~45 | 25 |
| MYCOM | 160 | 2980×2290×8500 | 3445×1455×1535 | 13×7×9 | Φ28 | 25 | ||||
| MYCOM | 160 | 2980×2370×8500 | 3445×1455×1535 | 13×7×9 | Φ35 | 25 | ||||
| AT80 | 80 | MYCOM | 220 | 3110×2420×8800 | 3445×1455×1645 | 13×7.5×9.5 | Φ22 | 30 | ||
| MYCOM | 220 | 3130×2440×8800 | 3445×1455×1645 | 13×7.5×9.5 | Φ28 | 30 | ||||
| MYCOM | 220 | 3210×2520×8800 | 3445×1455×1645 | 13×7.5×9.5 | Φ35 | 30 | ||||
| ♦Compressor Brand: MYCOM; Refrigerant: R717; Cooling Method: Evaporative condensation heat exchange; ♦ Power Supply: 380V/3P/50Hz;(For non-standard voltage, unit configuration needs to be calculated separately). ♦ Test Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C; Design Conditions T(condensing) : 40 ° C,T(evaporating)：-12℃. ♦ (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) ♦ (The final interpretation of the above metioned parameters is in Icesource, there will be no further notice, if there is any technical change.) |
||||||||||
Product Details
Large Equipment Output
CBFI is one of the world’s largest ice machine manufacturers, capable of producing large quantities (up to 80 tons / day) of tube ice making machine.
Internationally Renowned Compressor
MYCOM compressors are known for their stable operation for 80 years and are the compressor of choice for ammonia refrigeration systems.
Ice Cutting Device
The stainless steel ice cutting device is not easy to rust and will not pollute the ice. After many updates, our device has better performance and less trash ice.
PLC Control System
Siemens PLC and touch screen controller are used for automatic control in our ice machines. The whole process of ice making is under fully control.
